Arnott Industries Air Suspension Strut AS-3374
- Regular price
- $1,360.37
- Regular price
-
- Sale price
- $1,360.37
- Unit price
- per
Vendor : Arnott Industries
Product Type : Air Suspension Strut
Sku : DDWGAS-3374
Couldn't load pickup availability

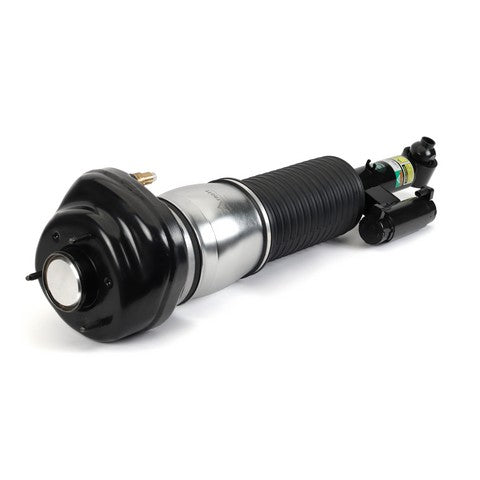

Arnott's AS-3374 is a completely remanufactured OE BMW rear right air suspension strut for the 2016-2022 BMW 7-Series (G11/G12 Chassis) and 2017-2022 Alpina B7 (G12) w/AWD or RWD. The strut is inspected, steam cleaned, and media blasted to bare metal before the damper is recharged with new high performance shock oil. Worn components, such as the piston and rod guides and seal pack are replaced. The damper and coil are dyno and functionally tested to assure OE performance. The Arnott remanufactured strut, which is painted with corrosion resistant paint, features a new multi-ply rubber air bladder manufactured by Continental ContiTech along with heavy-duty crimping rings, O-Rings, and new airline fitting. All Arnott remanufactured struts are designed to work with the vehicle's auto leveling and OE damping functionality. Note: International shipping not available for this product
Remanufactured and Tested in the USA
Recharged and rebuild OE damper
Maintains factory damping functionality
Continental ContiTech Air Sleeve
Replace in Pairs
Remanufactured Air Suspension Strut
| Name | Value |
|---|---|
| Adjustable Damping | Yes |
| Gas Charged | Yes |
| Hazardous Material | No |
| Minimum Order Quantity | 1 |
| Weight - Each (Gross Pounds) | 9.2723 |
| Weight - Each (Gross Pounds) | 20.3990 |
| Height - Each (Inch) | 7.7500 |
| Height - Each (cm) | 19.6850 |
| Length - Each (Inch) | 33.2500 |
| Length - Each (cm) | 84.4550 |
| Width - Each (Inch) | 8.7500 |
| Width - Each (cm) | 22.2250 |
| Short Description | Suspension Strut |
| Mounting Hardware Included | No |
| Contents | Air Shock Assembly |
| Connector Gender | Yes |
| Grade Type | Yes |
| Grade Type | Standard |
| Terminal Gender | No |
| Mounting Bracket Included | Rubber |
| Airflow Rate (Cubic Feet per Minute) | Yes |
| Inlet Port Diameter (Millimeter) | Black |
| Heavy Duty Crimping Rings | Yes |
| Springs Included | Yes |
| Spring Rate Type | Progressive |
| Spring Seat Included | No |
| Air Adjustable | Yes |
| Body End Measuring Point | Center Eye |
| Air Bladder | Yes |
| Bearing Plate Included | Yes |
| Internal Damper Type | Hydraulic |
| Lower Mounting Isolator Included | No |
| Progressive Spring Rate | Progressive |
| Item Level GTIN | 00815710019415 |
| Shock Spring Assisted | Yes |
| Quantity Per Application | 1 |
| Spring Isolators Included | Yes |
| Coil Over Springs Included | N/A |
| Dust Shield Material | N/A |
| Lower Mount Type | Loop/Eyelet |
| Shock Absorber Rod End Measuring Point | Shoulder of Stud |
| Upper Mount Type | Stud |
| Upper Mounting Isolator Included | Yes |
| Make | Model | Year | Engine | Type |
|---|---|---|---|---|
| BMW | 740E XDRIVE | 19-17 | All | Air Suspension Strut - REAR RIGHT |
| BMW | 740I | 22-16 | All | Air Suspension Strut - REAR RIGHT |
| BMW | 740I XDRIVE | 22-17 | All | Air Suspension Strut - REAR RIGHT |
| BMW | 740LE XDRIVE | 2017 | All | Air Suspension Strut - REAR RIGHT |
| BMW | 745E | 22-20 | All | Air Suspension Strut - REAR RIGHT |
| BMW | 745E XDRIVE | 22-20 | All | Air Suspension Strut - REAR RIGHT |
| BMW | 745LE XDRIVE | 22-20 | All | Air Suspension Strut - REAR RIGHT |
| BMW | 750I | 19-16 | All | Air Suspension Strut - REAR RIGHT |
| BMW | 750I XDRIVE | 22-16 | All | Air Suspension Strut - REAR RIGHT |
| BMW | 750LI | 19-16 | All | Air Suspension Strut - REAR RIGHT |
| BMW | 750LI XDRIVE | 22-17 | All | Air Suspension Strut - REAR RIGHT |
| BMW | ALPINA B7 | 22-17 | All | Air Suspension Strut - REAR RIGHT |
